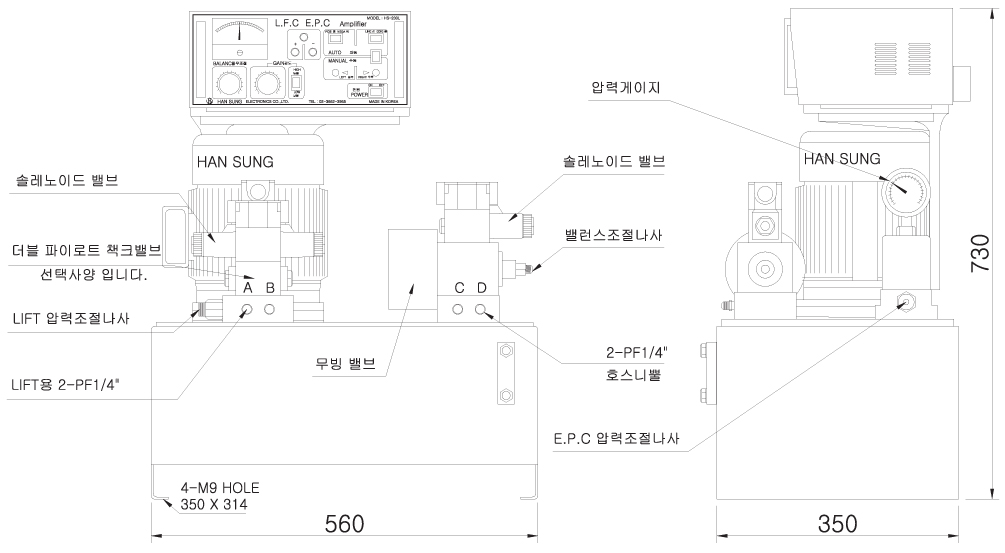

Large Tank of L.F.C, E.P.C HS-300L
If you need product data
download it.
It is large Hydraulic oil tank than 200 serial.
It is good for the heavy and fast cylinder of Winder.
Normally applied iron or paper web material.
| Motor | Three Pulse AC 220V ~ 440V 50/60Hz (1 ~ 2hp) |
|---|---|
| Pressure | E.P.C 1.0Mpa ~ 3.0Mpa (10Kg ~ 30Kg /㎝³) |
| Pump Capacity | 7.0ℓ ~ 10ℓ/min |
| Temp | -10℃ ~ +50℃ |
| Oil | 26ℓ |
| Oil Spec | Regulator Oil 32 ~ 46 |
| Weight | 80Kg (Not include oil) |
| Accessary | Low press cylinder 50*s/t150*1ps / Oil hose 3M*2ps / Lifter(option) |
※ Other than that, you can order it.
